¶ DemoA3 assembly
Written by
- Hyperion AC Team Leader: Hugo Jorand
Verified by
- Hyperion SE:
Approved by
- xxx
Intended Audience
- Hyperion AC TL : Lois Martins Piñon and Hugo Jorand
- Hyperion AC TM & Icarus TM
- Hyperion SE : Antoine Truchot
- Icarus SE : Guillaume Hueber and Axel Juaneda
¶ 1.Put an O-Ring's at the top of the room
¶ 2. Put the fixing ring on the chamber
- Put the fixing rings with the antennas up
The fixing rings must be placed so that they are in the upper part of the room
¶ 3. Screw the nozzle (copper part) to the chamber (8 screws)
With an O ring between them
¶ 4.Put the liner in the chambre
¶ 5.Injector

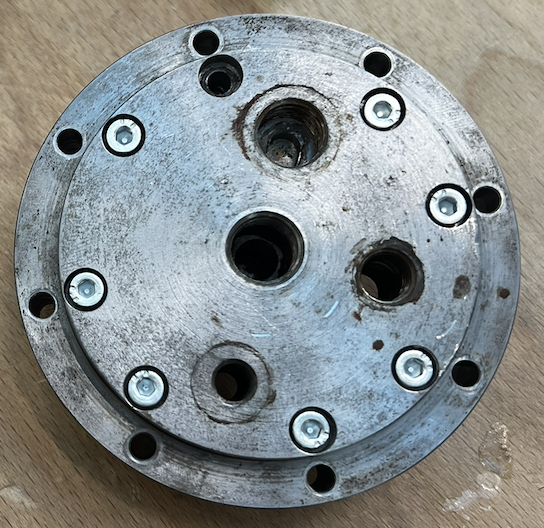

¶ 5.1 Assemble the injector
 |
 |
|---|

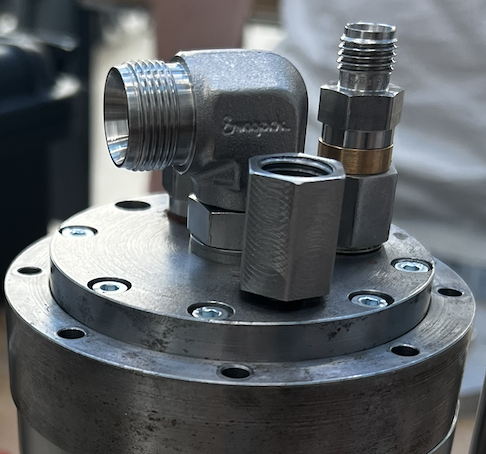

¶ 5.2 Put the records on the injector
 |
 |
|---|
¶ 5.3 Screw the injector on the chamber
¶ 6. Screw the thrust plate to the rings
¶ 7. Well done you have a rocket engine
